Solenoids function as the silent workhorses behind countless modern technologies. From precision medical devices to heavy industrial machinery, these electromechanical components convert electrical energy into linear motion with remarkable efficiency. However, the operating environments for these devices frequently expose delicate internal components to moisture, extreme vibration, chemicals, and thermal shock.

Engineers face the constant challenge of protecting these critical parts without compromising performance or adding excessive bulk. Coil overmolding offers a sophisticated solution to these durability issues. By encapsulating the solenoid coil in a robust protective layer, manufacturers create components that withstand harsh conditions while maintaining superior electrical insulation. Continue reading to discover what coil overmolding is in solenoid production.

Defining Coil Overmolding

Coil overmolding involves precisely injecting a polymer over a pre-wound solenoid coil. This manufacturing technique creates a seamless, protective barrier around the wire and the bobbin. Unlike simple coating methods or external housings, overmolding integrates the coil into a unified, solid part. The process creates a hermetic seal that completely isolates the copper windings from the outside world.

Engineers select specific polymer resins based on the intended operating environment of the solenoid. The molten plastic fills every void around the coil during injection, eliminating air pockets and securing the windings in place. This technique differs significantly from potting. While potting involves pouring a resin into a shell, overmolding uses high pressure to force material into a mold cavity. This results in a more consistent, dimensionally accurate component that fits into tighter spaces.

The Advantages of Coil Overmolding

Manufacturers implement overmolding because it delivers multifaceted benefits that extend the capabilities of the final product. The primary advantage involves superior environmental protection. Unprotected coils fail when moisture, dust, or corrosive chemicals penetrate the windings. Overmolding blocks these contaminants completely, allowing the solenoid to operate submerged in fluids or in dusty manufacturing environments without degradation.

Physical durability improves significantly through this process. Solenoids often operate in high-vibration environments, such as commercial trucking engines or industrial stamping presses. Constant vibration causes standard wires to fatigue and break over time. The solid polymer casing provided by overmolding absorbs shock and prevents wire movement. This structural support essentially eliminates failures caused by mechanical stress.

Electrical insulation represents another critical benefit. The polymer layer acts as a dielectric barrier, which prevents electrical arcing and short circuits. This feature proves vital in high-voltage applications where safety remains paramount. Additionally, thermal management improves with the right material selection. Many overmolding materials conduct heat away from the copper windings more efficiently than air does, helping the solenoid run cooler and reducing the risk of overheating during continuous duty cycles.

Finally, overmolding offers significant cost savings over the product’s lifespan. While the initial tooling requires investment, the resulting reduction in warranty claims, maintenance downtime, and replacement costs provides a high return on investment. The process also eliminates the need for separate housings or brackets, as mounting features can be molded directly into the coil assembly.

The Manufacturing Process Step-by-Step

The production process requires precision at every stage to achieve a reliable bond between the coil and the polymer. It begins with the preparation of the wound coil. Technicians or automated systems wind the magnet wire onto a bobbin or winding form. Solenoid Systems utilizes advanced coil-winding technology with 100 percent tension monitoring to ensure consistency. Following winding, the wire termination process takes place. Advanced resistance welding creates secure connections between the magnet wire and the terminals. This step proves critical, as resistance welding produces stronger joints than soldering and withstands higher temperatures.

Once the coil assembly is complete, the team cleans the component to remove any debris or oils that might interfere with adhesion. They then load the coil into a precisely machined mold cavity. The injection molding machine heats the selected thermoplastic or thermoset material until it becomes molten. The machine injects this material into the mold under controlled pressure. This pressure forces the plastic to flow around the coil windings and fill the cavity completely.

Solenoid Systems often employs Low Pressure Molding (LPM) techniques. LPM encapsulates parts safely without damaging fragile components. This method provides waterproofing and protection similar to potting but offers faster processing times. After the mold fills, the material cools and solidifies. The machine ejects the finished part, and quality control teams inspect the overmolded solenoid. They verify dimensional accuracy and test electrical continuity to confirm that the encapsulation formed a perfect seal.

Material Selection: Thermoplastics and Thermosets

Selecting the right material dictates the success of the final product. Manufacturers typically choose between thermoplastics and thermosets based on application requirements.

Thermoplastics

Thermoplastics offer versatility and processability. Materials such as nylon (polyamide), polypropylene, and polybutylene terephthalate (PBT) fall into this category. These materials melt when heated and solidify when cooled, allowing for faster cycle times. Nylon provides excellent toughness and chemical resistance, making it a common choice for automotive applications. PBT offers superior electrical properties and dimensional stability, resisting moisture absorption better than nylon. Engineers favor thermoplastics for high-volume production where cost and speed matter.

Thermosets

Thermosets operate differently. Materials like epoxy and phenolic resins undergo a chemical reaction during curing that permanently sets their shape. Once cured, these materials do not remelt when exposed to heat. This characteristic makes thermosets ideal for high-temperature environments or applications requiring extreme chemical resistance. They offer exceptional dimensional stability and rigidity. However, the processing time for thermosets generally exceeds that of thermoplastics. Engineers often select thermosets for aerospace or high-voltage industrial applications where thermal endurance is non-negotiable.

Applications Across Industries

The robustness provided by coil overmolding makes it essential across various demanding sectors. Automotive engineers rely heavily on overmolded solenoids for transmission control modules, variable valve timing, and fuel injection systems. These components must survive engine heat, road vibration, and exposure to transmission fluids for the vehicle’s life. Overmolding allows these parts to function reliably under the hood without bulky external protection.

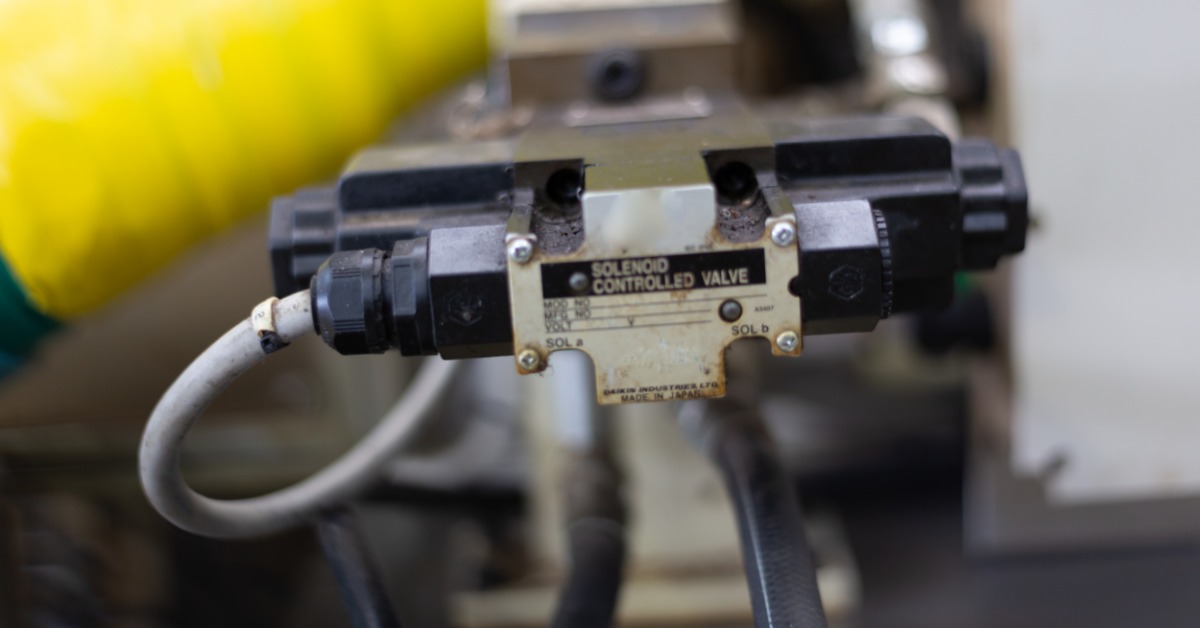

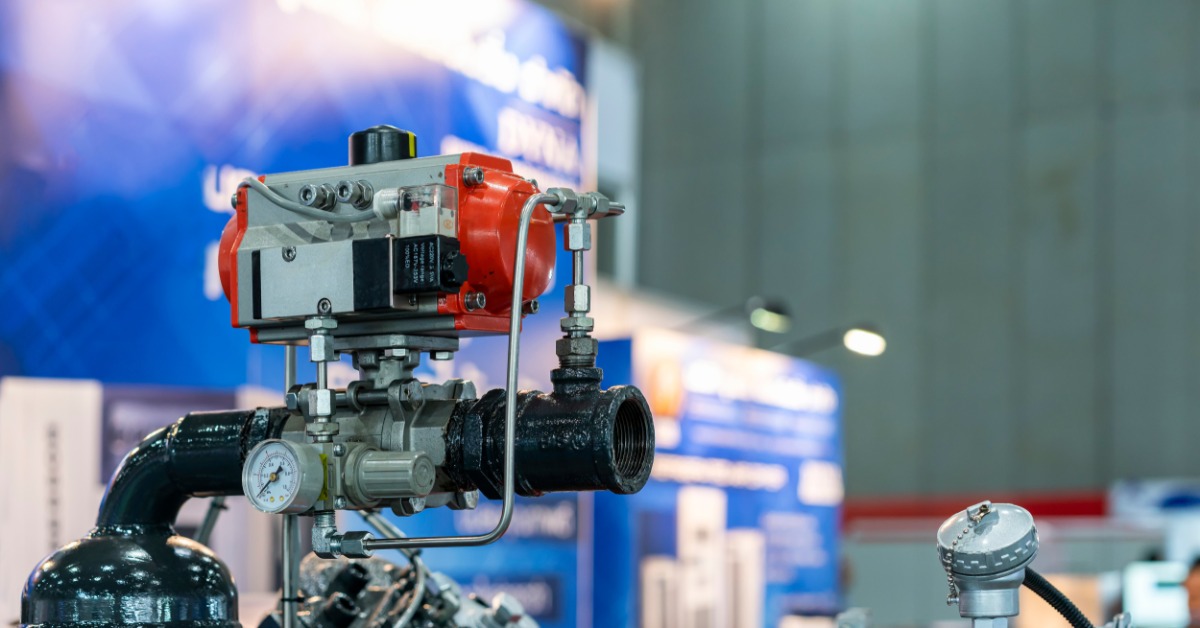

In the industrial sector, heavy machinery utilizes overmolded solenoids in hydraulic valves and actuators. These environments often involve exposure to oil, dirt, and high-pressure washdowns. The overmolding prevents water ingress and protects the coil from physical impact during operation.

Aerospace applications demand the highest level of reliability. Solenoids in landing gear systems and hydraulic flight controls utilize overmolding to prevent failure at high altitudes and extreme temperature fluctuations. The weight savings provided by eliminating external metal housings also appeals to aerospace designers.

The medical industry benefits significantly from this technology as well. Drug delivery systems and diagnostic equipment require sterile, reliable components. Overmolding creates smooth, non-porous surfaces that resist bacterial growth and withstand aggressive sterilization procedures.

Why Partner With Solenoid Systems?

A commitment to quality assurance defines the Solenoid Systems approach. As a premier solenoid manufacturer, the company invests in state-of-the-art technology, including multi-spindle coil winders and automated assembly cells. The use of resistance welding for wire termination distinguishes their process, creating durable connections that outlast traditional methods.

Solenoid Systems excels in manufacturing process design. The team designs efficient workflows that maximize quality and minimize waste. By utilizing Low Pressure Molding, they provide cost-effective protection for sensitive components, bridging the gap between expensive metal housings and vulnerable open coils.

Collaboration serves as a cornerstone of their business model. The experienced team works directly with clients to understand specific industry challenges. This partnership approach results in tailored solutions that meet industry-specific standards, whether for automotive production lines or precision aerospace applications.

Elevating Component Reliability

Coil overmolding transforms a standard solenoid into a rugged, high-performance component that withstands the toughest environments. The process provides essential protection against moisture, vibration, and thermal stress while improving electrical insulation. Selecting the right materials and manufacturing partners determines the success of these critical components. Solenoid Systems combines decades of experience with cutting-edge technology to deliver superior overmolding services. Engineers looking for reliable, custom solutions will find a dedicated partner in Solenoid Systems. Contact the team today to explore how overmolded solenoids will improve your next project.
